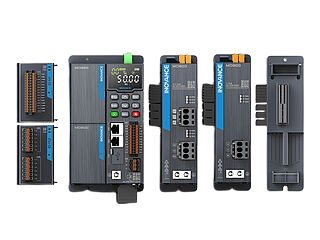

MD800 – compact AC MultiDrive
New – Innovative MD800 Compact AC Multidrive
MD800 is answering the call of OEMs for reduced installation costs and smaller machine cabinets
It has a modular design that allows up to 8 drives per rectifier, reducing overall drive footprint by up to 50% compared to traditional single drive modules
And it’s the rising star of our product range
It has a modular design that allows up to 8 drives per rectifier, reducing overall drive footprint by up to 50% compared to traditional single drive modules
And it’s the rising star of our product range
Inovance VFD
A variable-frequency drive (VFD)is a type of motor drive used in electro-mechanical.
View More
Inovance Servo
Servomotors are able to provide precise control of torque, speed or position.
View More
Motion Controller
Motion control is a sub-field of automation, encompassing the systems or sub-systems
View More
View More
Key Benefits - Summary
Significant reduction in total install costs
Significant reduction in total install costs:
- Mounting plate preparation time reduced by 50%
- Assembly time reduced by 50%
- Wiring requirements reduced by 2/3
- Reduced wiring time with pluggable terminals
High speed communications:
- 1 high-speed bus expansion card supports up to 8 drives
- Dual RJ45 ports allow easy wiring
Easy commissioning:
- Commissioning time slashed by 2/3
- Quick, easy maintenance
- Built-in cloning
Smaller machine cabinets:
- Drive footprint reduced by up to 50% compared to traditional single drive modules
To learn more, scroll on to read our full tech spec, or get in touch with your local Inovance representative
Comprehensive functionality:
- Individual STO SIL 3 for each drive
- Suitable for open loop asynchronous & PM synchronous motors
- +24 VDC control backup supply
- IP40 rated
- Remote LCD keypad (optional)
- Commissioning PC software available
- Dual rated:
Heavy duty (HD, G rating): 150% overload
Normal duty (ND, P rating): 110% overload
Compact footprint for smaller cabinets:
- Common height and depth: 182 mm x 160 mm
- Rectifier width: 99.5 mm
- Drive width: 49.5 mm
Designed for durability:
- High-level conformal coating (3C3 & 3S2)
- Operating temp. range: -20 to +60°C (de-rating > 50°C)
- Operating altitude: up to 4,000 m (de-rating > 1,000 m)
- Separate cooling channel for heatsink
Reduced installation costs:
- User-friendly pluggable connectors (spring type)
- Faster build time
- Reduced wiring
- User-friendly pluggable connectors (spring type)
- Fewer external components:
Common EMC filter (C2 compliant)
Input reactor
Fuses/MCCBs
Common built-in dynamic braking (variant)
Reduced installation costs:
- Built-in I/Os: 4 DI, 4 DI/DO, 2 AI, 1 RO
- Standard onboard communications: USB commissioning port, CAN, RS485
- Two expansion slots
I/O expansion cards
Fieldbus option cards:
